How to set wheel alignment. "Now with pictures!"

I thought I would make a quick "How-to" on setting wheel alignment since I was flipping my tie rod ends and I was going to have to re-align the wheels anyways.

Here's some of the tools you will need...

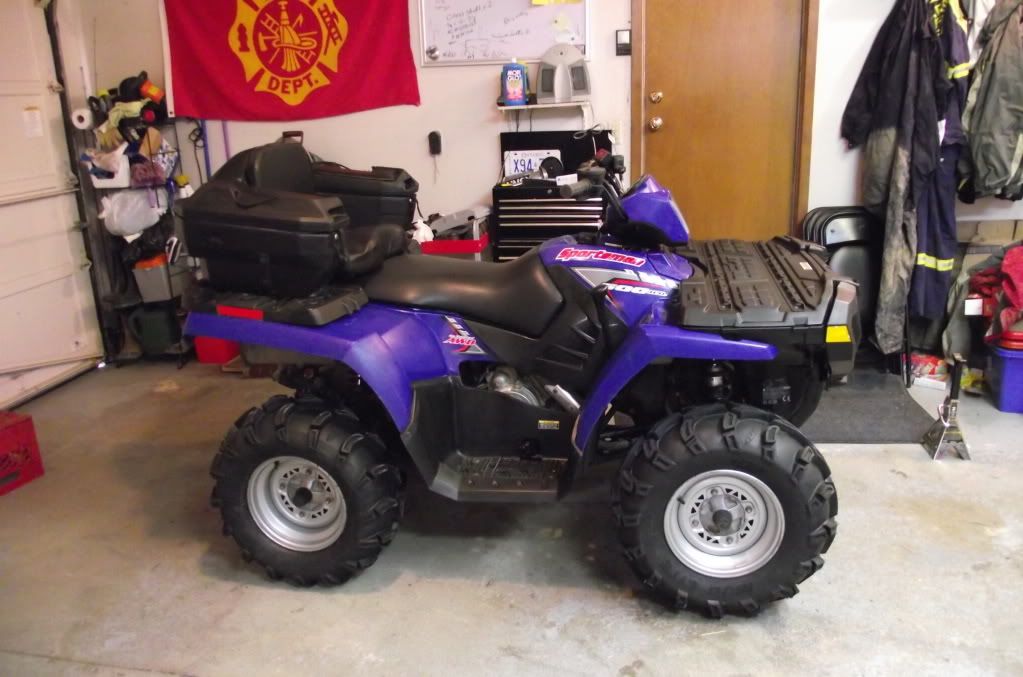

1.) Start with the ATV on a smooth and level surface, like a cement garage floor or driveway.

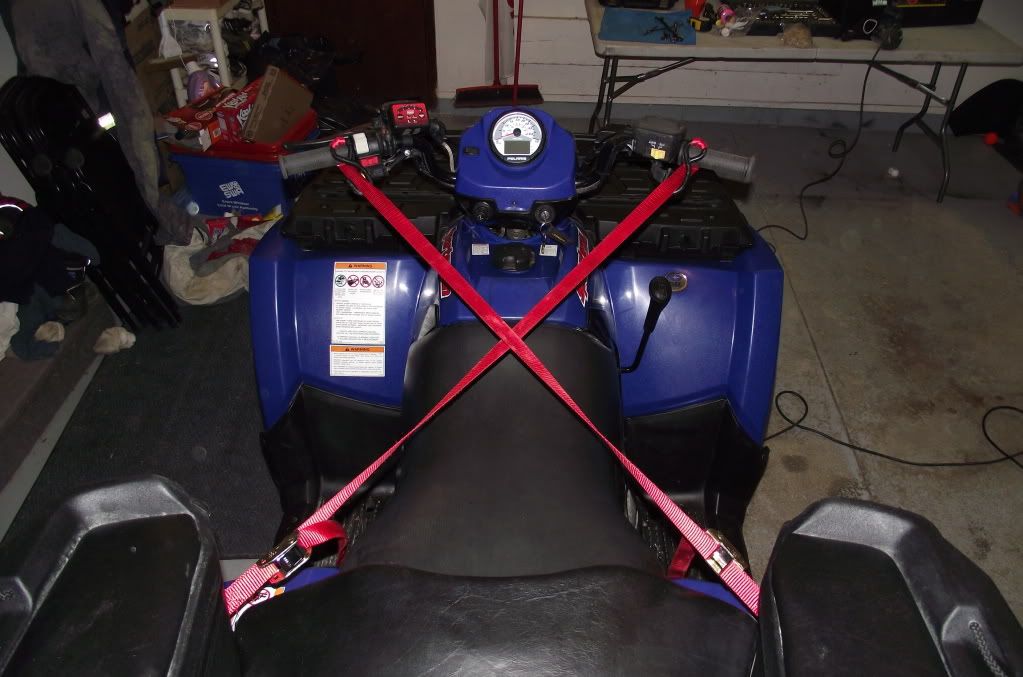

2.)Center up (Eyeball It) the handle bars and lock them into place with 2 ratchet straps, one on each side of handle bars. This of course prevents them from moving when your adjusting the tie-rods.


3.) Place two Jack Stands approximately 2 feet in front of the atv even with the outside edge of the two front wheels.

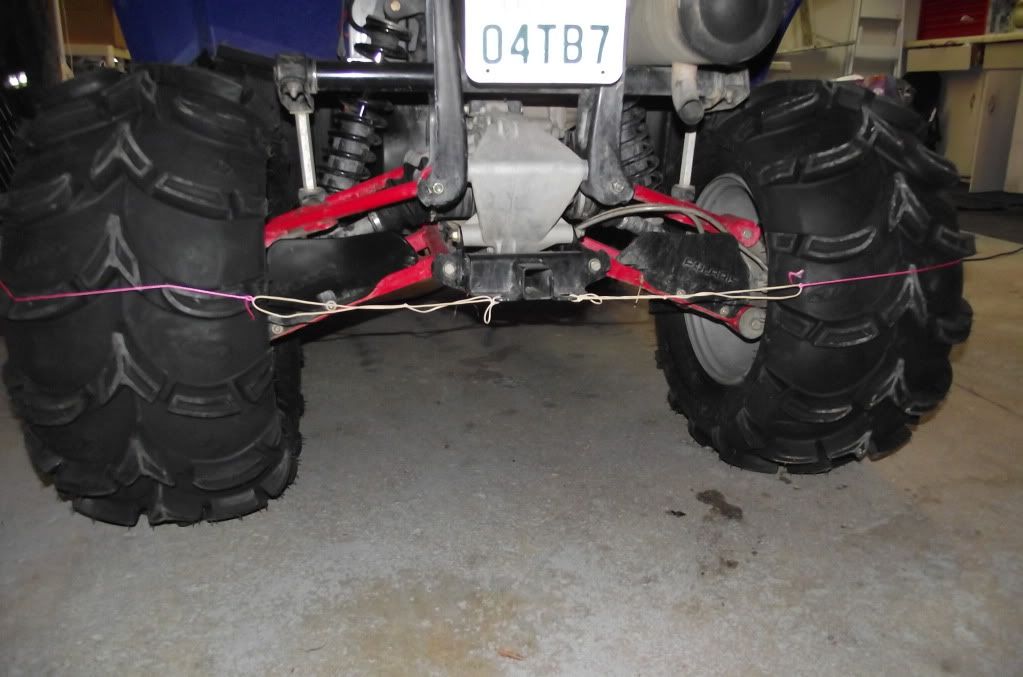

4.) Wrap a length of string all the way around the ATV and Jack Stands, Start and end at the rear hitch. Make sure the string is the same height from the ground on all 4 wheels. I like to attach a few elastic bands to both ends of the string before attaching the string to the hitch. This makes it easier to adjust the strings when moving the Jack Stands.

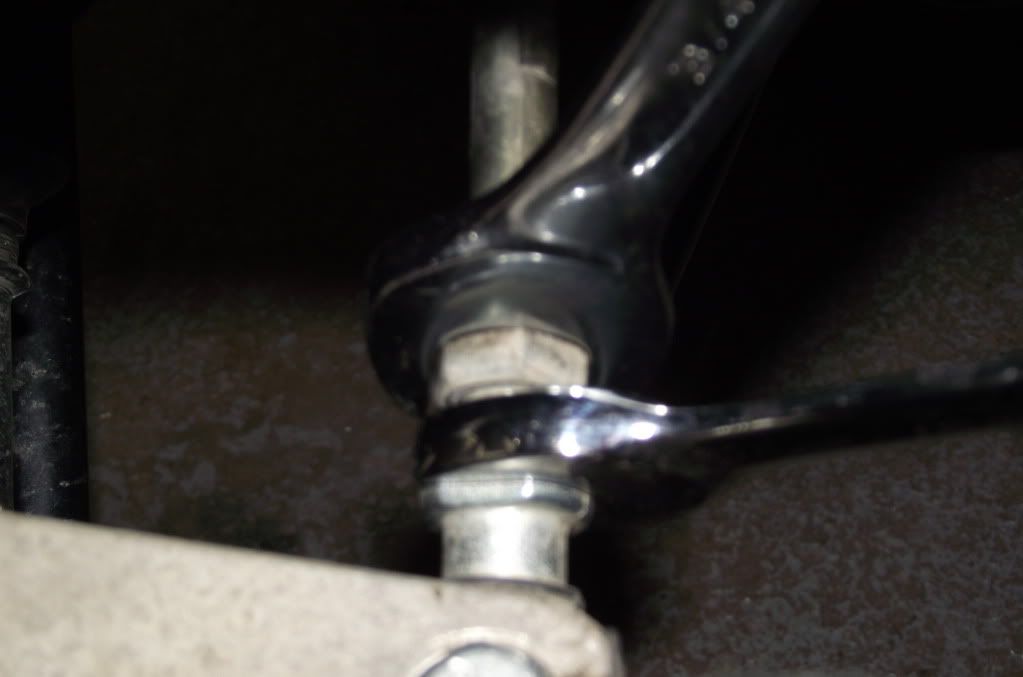

5.) Break lose the inner and outer tie-rod nuts. NOTE! Make sure you use 2 wrenches, one on the nut and one on the ball joint. Damage can occur by only using one wrench.



6.) Adjust the string by moving the Jack Stands in or out untill the string just touches both of the side surfaces of the rear tires on each side of the ATV. This will take some time to get it right but it needs to be done! The strings should be as close to the centerline of the rims as possible.



Check manufacturers wheel alignment specifications on your specific make and model before you adjust any components.

For this wheel alignment I'm using the Polaris Specs which seems to be a common setting.
Polaris - The recommended toe alignment is 1/8″ to 1/4″ toe out. This is a total amount, not per wheel.

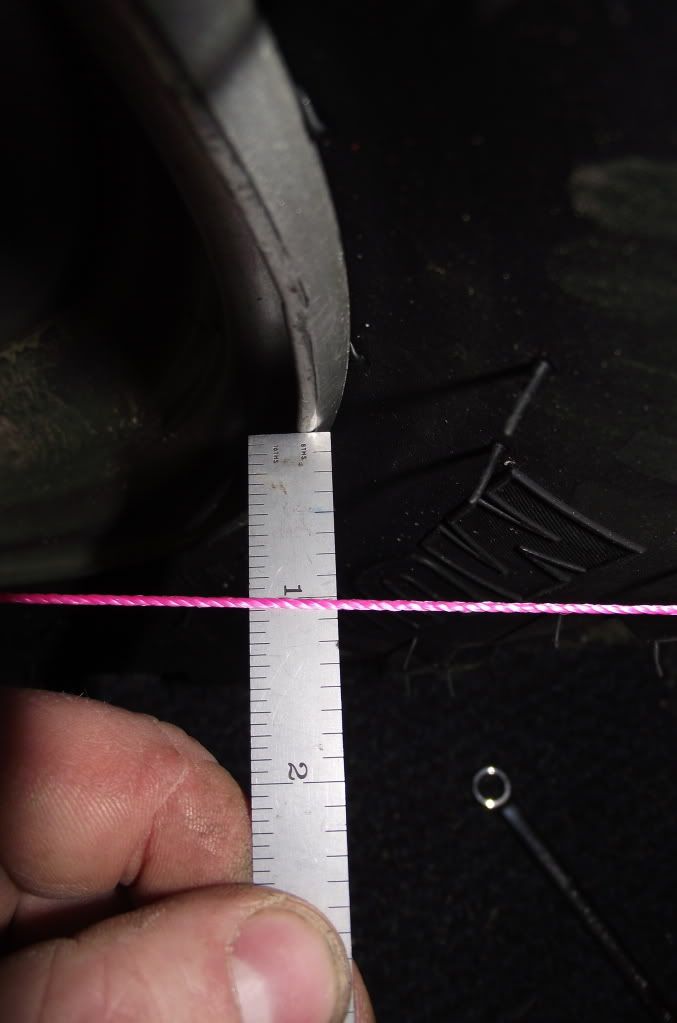

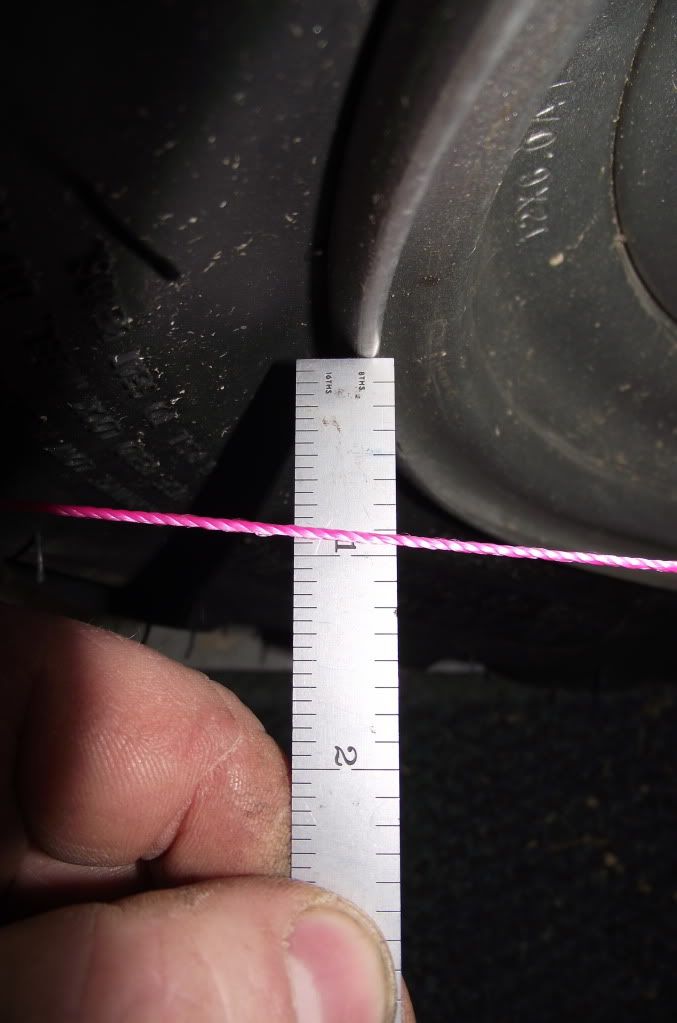

7.) On the front rim, measure the distance from the string to the rim at the front and rear edges of the rim. The rear measurement should be 1/16″ - 1/8″ (.2 to .3 cm) more than the front measurement.

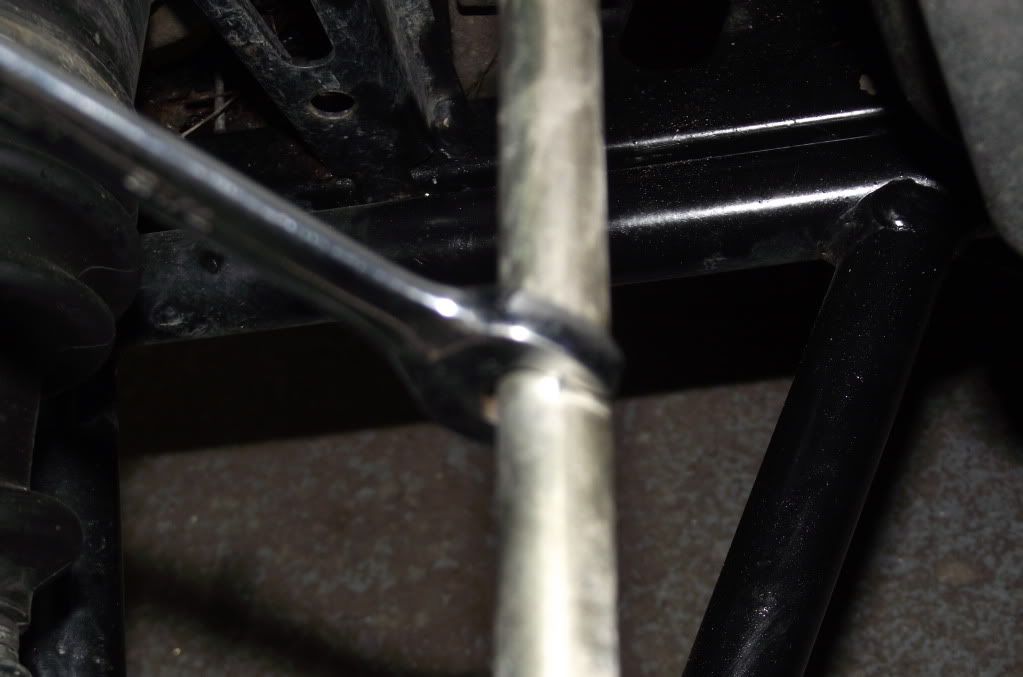

8.) If an adjustment is necessary, Turn the tie rod itself with a wrench or your hand in small increments. It doesn't take much to move the tire a long way, so go slow. Keep re-checking your measurement's until you have a 1/16″ - 1/8″ differance to the string.


9.) Once your satisfied that you have the correct "Toe Out" measurements you can tighten up the inner and outter tie-rod nuts on both sides. AGAIN...make sure to use 2 wrenches.

10.) Now take your ATV for a test drive to test your adjustments. If it still pulls one way or the other, just repeat the above steps to tweek the adjustments again utill your happy.

The whole process only takes about 15-20 min.
__________________
2005 Polaris Sportsman 500 HO
26" Mudlite XL's, Clutch Kit, 3 Headlight Mod, 1/4" Front Wheel Spacers, 1" Front Spring Spacers, Uni Filter, Heated Grips, 12V Electrical Accessory Panel, Etrex GPS Handlebar Mount and hardwire, Passenger Seat with Cargo, Horn, Snorkeled Vent Tubes, Mossy Oak Graphic Vinyl Wrap, 2500 Runva Winch, ShockPro's Camo Shock Covers
Reply With Quote
Sponsored Links
PolarisATVForums is the premier Polaris ATV Forum on the internet. Registered Users do not see these ads, So Register, It's Free!
  #2 (permalink)
Old 03-25-2012, 09:13 AM
bgirard420's Avatar
Polaris ATV Legend

Member #11494
Join Date: Jan 2011
Location: Rhode Island
Posts: 4,602
Nice job with this Rich!
__________________
2013 Polaris XP 850 HO LE EPS
  • Full Ricochet Armor (Black Anodized), ATV GURU Cobra F & R Brush Guards, Polaris L&R rear box w/Backrest & Bags, Scrambler LE Hand Guards, Symtec Heat Demon Grips, Rotopax 2+2
2010 Polaris 500 HO
  • 25" GBC Spartacus, EPI Clutch Kit, Full Ricochet Armor, Polaris 2500 lb Winch Rear Box & Hand Guards, SuperATV Bumpers
Reply With Quote
  #3 (permalink)
Old 03-25-2012, 09:24 AM
MyBoyToy's Avatar
Extreme ATV Enthusiast

Member #19629
Join Date: Oct 2011
Location: Rome NY
Posts: 120
will have to bookmark this! great write up.
__________________
1996 Sportsman 500--- Old be dependable... starts and runs good, just needs tweaking

ITP 25" XL Mudlites
STI HD2 Matte Black Alloy Wheels
48" Polaris Plow
Reply With Quote
  #4 (permalink)
Old 03-25-2012, 09:34 AM
dbmachine's Avatar
Polaris ATV Junkie!

Member #23588
Join Date: Feb 2012
Posts: 810
Awesome...needs to be a sticky at the top
Reply With Quote
  #5 (permalink)
Old 03-25-2012, 11:24 AM
cwlongshot's Avatar
Polaris ATV Legend

Member #6579
Join Date: Aug 2010
Location: Central Connecticut
Posts: 4,023
Good useful writeup!

I have been using the 36-48" X 3/4" alum angle iron method for about 25 years on my jeeps and ATVs. Simply attach the angle to each of the front tires, centered and even. Now measure between the ends... adjust as needed>

Versions of the same, GOOD JOB!

CW
